INDI is a simple XML-like communications protocol described for interactive and automated remote control of diverse instrumentation. INDI is small, easy to parse, and stateless. In the INDI paradigm each Device poses all command and status functions in terms of setting and getting Properties. Each Property is a vector of one or more members. Each property has a current value vector; a target value vector that provides information about how it should be sequenced with respect to other Properties to accomplish one coordinates unit of observation; and provides hints as to how it might be displayed for interactive manipulation in a GUI.

The main key concept in INDI is that devices have the ability to describe themselves. This is accomplished by using XML to describe a generic hierarchy that can represent both canonical and non-canonical devices. All devices may contain one or more properties. A property in the INDI paradigm describes a specific function of the driver. Any property may contain one or more elements. There are four types of INDI properties:

  • Text property: Property to transfer simple text information in ISO-8859-1. The text is not encoded or encrypted on transfer. If the text includes elements that can break XML syntax, a BLOB property should be used to make the transfer.
  • Number property: Property to transfer numeric information with configurable minimum, maximum, and step values. The supported number formats are decimal and sexigesmal. The property includes a GUI hint element in printf style format to enable clients to properly display numeric properties.
  • Switch property: Property to hold a group of options or selections (Represented in GUI by buttons and check boxes).
  • Light property: Property to hold a group of status indicators (Represented in GUI by colored LEDs).
  • BLOB property: BLOB is a Binary Large OBject used to transfer binary data to and from drivers.

For example, all INDI devices share the CONNECTION standard switch property. The CONNECTION property has two elements: CONNECT and DISCONNECT switches. GUI clients parse the generic XML description of properties and builds a GUI representation suitable for direct human interaction.

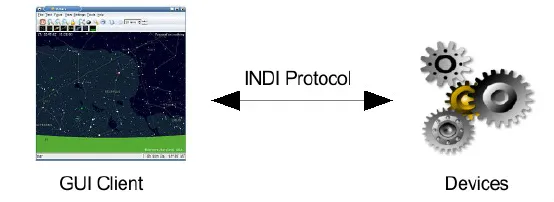

Figure 1 illustrates a simple INDI configuration. INDI does not pose any policies on how clients represent data, but some properties include hints to clients as to how they should be represented. Possible clients include simple loggers, GUI clients, and complex automated scripts.

 Indi client
