INDI::PowerInterface Class Reference

#include <indipowerinterface.h>

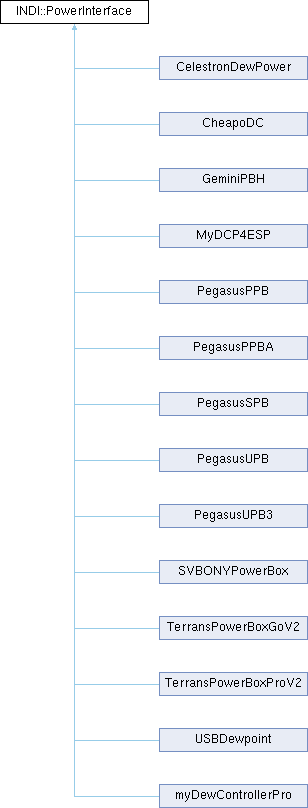

Inheritance diagram for INDI::PowerInterface:

Public Types
enum	{   POWER_HAS_DC_OUT = 1 << 0 , POWER_HAS_DEW_OUT = 1 << 1 , POWER_HAS_VARIABLE_OUT = 1 << 2 , POWER_HAS_VOLTAGE_SENSOR = 1 << 3 ,   POWER_HAS_OVERALL_CURRENT = 1 << 4 , POWER_HAS_PER_PORT_CURRENT = 1 << 5 , POWER_HAS_LED_TOGGLE = 1 << 6 , POWER_HAS_AUTO_DEW = 1 << 7 ,   POWER_HAS_POWER_CYCLE = 1 << 8 , POWER_HAS_USB_TOGGLE = 1 << 9 , POWER_HAS_OVER_VOLTAGE_PROTECTION = 1 << 10 , POWER_HAS_OVER_VOTALGE_PROTECTION = POWER_HAS_OVER_VOLTAGE_PROTECTION ,   POWER_OFF_ON_DISCONNECT = 1 << 11 }

Public Member Functions
uint32_t	GetCapability () const
	GetPowerCapability returns the capability of the Power device.
void	SetCapability (uint32_t cap)
	SetPowerCapability sets the Power capabilities. All capabilities must be initialized.
bool	HasDCOutput ()
bool	HasDewOutput ()
bool	HasVariableOutput ()
bool	HasVoltageSensor ()
bool	HasOverallCurrent ()
bool	HasPerPortCurrent ()
bool	HasLEDToggle ()
bool	HasAutoDew ()
bool	HasUSBPort ()
bool	HasOverVoltageProtection ()
bool	ShouldPowerOffOnDisconnect ()

Public Attributes
enum INDI::PowerInterface:: { ... }	PowerCapability

Protected Types
enum	{ SENSOR_VOLTAGE , SENSOR_CURRENT , SENSOR_POWER , N_POWER_SENSORS }

Protected Member Functions
	PowerInterface (DefaultDevice *defaultDevice)
void	initProperties (const char *groupName, size_t nPowerPorts=0, size_t nDewPorts=0, size_t nVariablePorts=0, size_t nAutoDewPorts=0, size_t nUSBPorts=0)
	Initialize Power properties. It is recommended to call this function within initProperties() of your primary device.
bool	updateProperties ()
	updateProperties Define or Delete Power properties based on the connection status of the base device
bool	processNumber (const char *dev, const char *name, double values[], char *names[], int n)
	Process Power number properties.
bool	processSwitch (const char *dev, const char *name, ISState *states, char *names[], int n)
	Process Power switch properties.
bool	processText (const char *dev, const char *name, char *texts[], char *names[], int n)
	Process Power text properties.
virtual bool	SetPowerPort (size_t port, bool enabled)
	SetPowerPort Set power port on/off.
virtual bool	SetDewPort (size_t port, bool enabled, double dutyCycle)
	SetDewPort Set DEW/Dew port duty cycle.
virtual bool	SetVariablePort (size_t port, bool enabled, double voltage)
	SetVariablePort Set variable voltage port.
virtual bool	SetLEDEnabled (bool enabled)
	SetLEDEnabled Enable/disable power LEDs.
virtual bool	SetAutoDewEnabled (size_t port, bool enabled)
	SetAutoDewEnabled Enable/disable automatic dew control.
virtual bool	CyclePower ()
	CyclePower Cycle power to all ports.
virtual bool	SetUSBPort (size_t port, bool enabled)
	SetUSBPort Set USB port on/off.
bool	saveConfigItems (FILE *fp)
	saveConfigItems Save power properties in config file

Protected Attributes
INDI::PropertyNumber	PowerSensorsNP {N_POWER_SENSORS}
INDI::PropertySwitch	PowerChannelsSP {0}
INDI::PropertyNumber	PowerChannelCurrentNP {0}
INDI::PropertyText	PowerChannelLabelsTP {0}
INDI::PropertySwitch	DewChannelsSP {0}
INDI::PropertyNumber	DewChannelDutyCycleNP {0}
INDI::PropertyNumber	DewChannelCurrentNP {0}
INDI::PropertyText	DewChannelLabelsTP {0}
INDI::PropertySwitch	VariableChannelsSP {0}
INDI::PropertyNumber	VariableChannelVoltsNP {0}
INDI::PropertyText	VariableChannelLabelsTP {0}
INDI::PropertyNumber	OverVoltageProtectionNP {1}
INDI::PropertySwitch	PowerOffOnDisconnectSP {2}
INDI::PropertySwitch	LEDControlSP {2}
INDI::PropertySwitch	AutoDewSP {0}
INDI::PropertySwitch	USBPortSP {0}
INDI::PropertyText	USBPortLabelsTP {0}
INDI::PropertySwitch	PowerCycleAllSP {1}
uint32_t	powerCapability = 0
DefaultDevice *	m_defaultDevice { nullptr }
const char *	POWER_TAB {"Power"}
const char *	DEW_TAB {"Dew"}
const char *	USB_TAB {"USB"}
const char *	VARIABLE_TAB {"Variable"}

Detailed Description

Definition at line 34 of file indipowerinterface.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
POWER_HAS_DC_OUT	Has 12V DC outputs
POWER_HAS_DEW_OUT	Has DEW outputs for dew heaters
POWER_HAS_VARIABLE_OUT	Has variable voltage outputs
POWER_HAS_VOLTAGE_SENSOR	Has voltage monitoring
POWER_HAS_OVERALL_CURRENT	Has overall current monitoring
POWER_HAS_PER_PORT_CURRENT	Has per-port current monitoring
POWER_HAS_LED_TOGGLE	Can toggle power LEDs
POWER_HAS_AUTO_DEW	Has automatic dew control
POWER_HAS_POWER_CYCLE	Can cycle power to all ports
POWER_HAS_USB_TOGGLE	Can toggle power to specific USB ports
POWER_HAS_OVER_VOLTAGE_PROTECTION	Do not toggle output DC ports if voltage exceeds a threshold
POWER_HAS_OVER_VOTALGE_PROTECTION	Deprecated misspelling, use POWER_HAS_OVER_VOLTAGE_PROTECTION
POWER_OFF_ON_DISCONNECT	Power off all DC, Dew, and Variable ports when driver is disconnected

Definition at line 41 of file indipowerinterface.h.

anonymous enum

anonymous enum

protected

Enumerator
SENSOR_VOLTAGE	Input voltage
SENSOR_CURRENT	Total current draw
SENSOR_POWER	Total power consumption
N_POWER_SENSORS	Number of power sensors

Definition at line 258 of file indipowerinterface.h.

Constructor & Destructor Documentation

PowerInterface()

INDI::PowerInterface::PowerInterface ( DefaultDevice *  defaultDevice )

explicitprotected

Definition at line 32 of file indipowerinterface.cpp.

Member Function Documentation

CyclePower()

bool INDI::PowerInterface::CyclePower ( )

protectedvirtual

CyclePower Cycle power to all ports.

Returns

True if successful, false otherwise

Reimplemented in CheapoDC, MyDCP4ESP, PegasusPPB, PegasusPPBA, PegasusUPB, PegasusUPB3, SVBONYPowerBox, TerransPowerBoxGoV2, TerransPowerBoxProV2, and USBDewpoint.

Definition at line 535 of file indipowerinterface.cpp.

GetCapability()

uint32_t INDI::PowerInterface::GetCapability ( ) const

inline

GetPowerCapability returns the capability of the Power device.

Definition at line 61 of file indipowerinterface.h.

HasAutoDew()

bool INDI::PowerInterface::HasAutoDew ( )

inline

Returns

True if power device has automatic dew control

Definition at line 134 of file indipowerinterface.h.

HasDCOutput()

bool INDI::PowerInterface::HasDCOutput ( )

inline

Returns

True if power device has 12V DC outputs

Definition at line 78 of file indipowerinterface.h.

HasDewOutput()

bool INDI::PowerInterface::HasDewOutput ( )

inline

Returns

True if power device has DEW outputs for dew heaters

Definition at line 86 of file indipowerinterface.h.

HasLEDToggle()

bool INDI::PowerInterface::HasLEDToggle ( )

inline

Returns

True if power device can toggle power LEDs

Definition at line 126 of file indipowerinterface.h.

HasOverallCurrent()

bool INDI::PowerInterface::HasOverallCurrent ( )

inline

Returns

True if power device has overall current monitoring

Definition at line 110 of file indipowerinterface.h.

HasOverVoltageProtection()

bool INDI::PowerInterface::HasOverVoltageProtection ( )

inline

Returns

True if DC ports can only be toggled if the input voltage is within a certain threshold.

Note

This applies to unregulated power controller where the output DC voltage matches the input DC voltage

Definition at line 151 of file indipowerinterface.h.

HasPerPortCurrent()

bool INDI::PowerInterface::HasPerPortCurrent ( )

inline

Returns

True if power device has per-port current monitoring

Definition at line 118 of file indipowerinterface.h.

HasUSBPort()

bool INDI::PowerInterface::HasUSBPort ( )

inline

Returns

True if power device can toggle power to specific USB ports

Definition at line 142 of file indipowerinterface.h.

HasVariableOutput()

bool INDI::PowerInterface::HasVariableOutput ( )

inline

Returns

True if power device has variable voltage outputs

Definition at line 94 of file indipowerinterface.h.

HasVoltageSensor()

bool INDI::PowerInterface::HasVoltageSensor ( )

inline

Returns

True if power device has voltage monitoring

Definition at line 102 of file indipowerinterface.h.

initProperties()

void INDI::PowerInterface::initProperties ( const char *  groupName, size_t  nPowerPorts = 0, size_t  nDewPorts = 0, size_t  nVariablePorts = 0, size_t  nAutoDewPorts = 0, size_t  nUSBPorts = 0  )

protected

Initialize Power properties. It is recommended to call this function within initProperties() of your primary device.

Parameters

groupName	Group or tab name to be used to define Power properties.
nPowerPorts	Number of 12V power ports
nDewPorts	Number of DEW/Dew heater ports
nVariablePorts	Number of variable voltage ports
nAutoDewPorts	Number of Auto Dew ports
nUSBPorts	Number of USB ports

Definition at line 55 of file indipowerinterface.cpp.

processNumber()

bool INDI::PowerInterface::processNumber ( const char *  dev, const char *  name, double  values[], char *  names[], int  n  )

protected

Process Power number properties.

Definition at line 463 of file indipowerinterface.cpp.

processSwitch()

bool INDI::PowerInterface::processSwitch ( const char *  dev, const char *  name, ISState *  states, char *  names[], int  n  )

protected

Process Power switch properties.

Definition at line 554 of file indipowerinterface.cpp.

processText()

bool INDI::PowerInterface::processText ( const char *  dev, const char *  name, char *  texts[], char *  names[], int  n  )

protected

Process Power text properties.

Definition at line 726 of file indipowerinterface.cpp.

saveConfigItems()

bool INDI::PowerInterface::saveConfigItems ( FILE *  fp )

protected

saveConfigItems Save power properties in config file

Parameters

fp	Pointer to config file

Returns

Always return true

Definition at line 806 of file indipowerinterface.cpp.

SetAutoDewEnabled()

bool INDI::PowerInterface::SetAutoDewEnabled ( size_t  port, bool  enabled  )

protectedvirtual

SetAutoDewEnabled Enable/disable automatic dew control.

Parameters

enabled

True to enable, false to disable

Returns

True if successful, false otherwise

Reimplemented in CheapoDC, CelestronDewPower, MyDCP4ESP, myDewControllerPro, PegasusPPB, PegasusPPBA, PegasusSPB, PegasusUPB, PegasusUPB3, SVBONYPowerBox, TerransPowerBoxGoV2, TerransPowerBoxProV2, and USBDewpoint.

Definition at line 528 of file indipowerinterface.cpp.

SetCapability()

void INDI::PowerInterface::SetCapability ( uint32_t  cap )

inline

SetPowerCapability sets the Power capabilities. All capabilities must be initialized.

Parameters

cap	pointer to Power capability struct.

Definition at line 70 of file indipowerinterface.h.

SetDewPort()

bool INDI::PowerInterface::SetDewPort ( size_t  port, bool  enabled, double  dutyCycle  )

protectedvirtual

SetDewPort Set DEW/Dew port duty cycle.

Parameters

port	Port number starting from 0
enabled	True to turn on, false to turn off
dutyCycle	Duty cycle value 0-100

Returns

True if successful, false otherwise

Reimplemented in CheapoDC, CelestronDewPower, GeminiPBH, MyDCP4ESP, myDewControllerPro, PegasusPPB, PegasusPPBA, PegasusSPB, PegasusUPB, PegasusUPB3, SVBONYPowerBox, TerransPowerBoxGoV2, TerransPowerBoxProV2, and USBDewpoint.

Definition at line 777 of file indipowerinterface.cpp.

SetLEDEnabled()

bool INDI::PowerInterface::SetLEDEnabled ( bool  enabled )

protectedvirtual

SetLEDEnabled Enable/disable power LEDs.

Parameters

enabled

True to enable LEDs, false to disable

Returns

True if successful, false otherwise

Reimplemented in CheapoDC, CelestronDewPower, MyDCP4ESP, PegasusPPB, PegasusPPBA, PegasusSPB, PegasusUPB, PegasusUPB3, SVBONYPowerBox, TerransPowerBoxGoV2, TerransPowerBoxProV2, and USBDewpoint.

Definition at line 793 of file indipowerinterface.cpp.

SetPowerPort()

bool INDI::PowerInterface::SetPowerPort ( size_t  port, bool  enabled  )

protectedvirtual

SetPowerPort Set power port on/off.

Parameters

port	Port number starting from 0
enabled	True to turn on, false to turn off

Returns

True if successful, false otherwise

Reimplemented in CheapoDC, CelestronDewPower, GeminiPBH, MyDCP4ESP, PegasusPPB, PegasusPPBA, PegasusSPB, PegasusUPB, PegasusUPB3, SVBONYPowerBox, TerransPowerBoxGoV2, TerransPowerBoxProV2, and USBDewpoint.

Definition at line 770 of file indipowerinterface.cpp.

SetUSBPort()

bool INDI::PowerInterface::SetUSBPort ( size_t  port, bool  enabled  )

protectedvirtual

SetUSBPort Set USB port on/off.

Parameters

port	Port number starting from 0
enabled	True to turn on, false to turn off

Returns

True if successful, false otherwise

Reimplemented in CheapoDC, GeminiPBH, MyDCP4ESP, PegasusPPB, PegasusPPBA, PegasusSPB, PegasusUPB, PegasusUPB3, SVBONYPowerBox, TerransPowerBoxGoV2, TerransPowerBoxProV2, and USBDewpoint.

Definition at line 799 of file indipowerinterface.cpp.

SetVariablePort()

bool INDI::PowerInterface::SetVariablePort ( size_t  port, bool  enabled, double  voltage  )

protectedvirtual

SetVariablePort Set variable voltage port.

Parameters

port	Port number starting from 0
enabled	True to turn on, false to turn off
voltage	Target voltage

Returns

True if successful, false otherwise

Reimplemented in CheapoDC, CelestronDewPower, MyDCP4ESP, PegasusPPB, PegasusSPB, PegasusUPB, PegasusUPB3, SVBONYPowerBox, TerransPowerBoxGoV2, TerransPowerBoxProV2, and USBDewpoint.

Definition at line 785 of file indipowerinterface.cpp.

ShouldPowerOffOnDisconnect()

bool INDI::PowerInterface::ShouldPowerOffOnDisconnect ( )

inline

Returns

True if all power should be toggled off when driver is connected.

Note

Default behavior is power output does not change on driver disconnect.

Definition at line 160 of file indipowerinterface.h.

updateProperties()

bool INDI::PowerInterface::updateProperties ( )

protected

updateProperties Define or Delete Power properties based on the connection status of the base device

Returns

True if successful, false otherwise.

Definition at line 347 of file indipowerinterface.cpp.

Member Data Documentation

AutoDewSP

INDI::PropertySwitch INDI::PowerInterface::AutoDewSP {0}

protected

Definition at line 295 of file indipowerinterface.h.

DEW_TAB

const char* INDI::PowerInterface::DEW_TAB {"Dew"}

protected

Definition at line 308 of file indipowerinterface.h.

DewChannelCurrentNP

INDI::PropertyNumber INDI::PowerInterface::DewChannelCurrentNP {0}

protected

Definition at line 277 of file indipowerinterface.h.

DewChannelDutyCycleNP

INDI::PropertyNumber INDI::PowerInterface::DewChannelDutyCycleNP {0}

protected

Definition at line 276 of file indipowerinterface.h.

DewChannelLabelsTP

INDI::PropertyText INDI::PowerInterface::DewChannelLabelsTP {0}

protected

Definition at line 278 of file indipowerinterface.h.

DewChannelsSP

INDI::PropertySwitch INDI::PowerInterface::DewChannelsSP {0}

protected

Definition at line 275 of file indipowerinterface.h.

LEDControlSP

INDI::PropertySwitch INDI::PowerInterface::LEDControlSP {2}

protected

Definition at line 292 of file indipowerinterface.h.

m_defaultDevice

DefaultDevice* INDI::PowerInterface::m_defaultDevice { nullptr }

protected

Definition at line 305 of file indipowerinterface.h.

OverVoltageProtectionNP

INDI::PropertyNumber INDI::PowerInterface::OverVoltageProtectionNP {1}

protected

Definition at line 286 of file indipowerinterface.h.

POWER_TAB

const char* INDI::PowerInterface::POWER_TAB {"Power"}

protected

Definition at line 307 of file indipowerinterface.h.

[]

enum { ... } INDI::PowerInterface::PowerCapability

powerCapability

uint32_t INDI::PowerInterface::powerCapability = 0

protected

Definition at line 304 of file indipowerinterface.h.

PowerChannelCurrentNP

INDI::PropertyNumber INDI::PowerInterface::PowerChannelCurrentNP {0}

protected

Definition at line 271 of file indipowerinterface.h.

PowerChannelLabelsTP

INDI::PropertyText INDI::PowerInterface::PowerChannelLabelsTP {0}

protected

Definition at line 272 of file indipowerinterface.h.

PowerChannelsSP

INDI::PropertySwitch INDI::PowerInterface::PowerChannelsSP {0}

protected

Definition at line 270 of file indipowerinterface.h.

PowerCycleAllSP

INDI::PropertySwitch INDI::PowerInterface::PowerCycleAllSP {1}

protected

Definition at line 302 of file indipowerinterface.h.

PowerOffOnDisconnectSP

INDI::PropertySwitch INDI::PowerInterface::PowerOffOnDisconnectSP {2}

protected

Definition at line 289 of file indipowerinterface.h.

PowerSensorsNP

INDI::PropertyNumber INDI::PowerInterface::PowerSensorsNP {N_POWER_SENSORS}

protected

Definition at line 267 of file indipowerinterface.h.

USB_TAB

const char* INDI::PowerInterface::USB_TAB {"USB"}

protected

Definition at line 309 of file indipowerinterface.h.

USBPortLabelsTP

INDI::PropertyText INDI::PowerInterface::USBPortLabelsTP {0}

protected

Definition at line 299 of file indipowerinterface.h.

USBPortSP

INDI::PropertySwitch INDI::PowerInterface::USBPortSP {0}

protected

Definition at line 298 of file indipowerinterface.h.

VARIABLE_TAB

const char* INDI::PowerInterface::VARIABLE_TAB {"Variable"}

protected

Definition at line 310 of file indipowerinterface.h.

VariableChannelLabelsTP

INDI::PropertyText INDI::PowerInterface::VariableChannelLabelsTP {0}

protected

Definition at line 283 of file indipowerinterface.h.

VariableChannelsSP

INDI::PropertySwitch INDI::PowerInterface::VariableChannelsSP {0}

protected

Definition at line 281 of file indipowerinterface.h.

VariableChannelVoltsNP

INDI::PropertyNumber INDI::PowerInterface::VariableChannelVoltsNP {0}

protected

Definition at line 282 of file indipowerinterface.h.

---

The documentation for this class was generated from the following files:

• indipowerinterface.h
• indipowerinterface.cpp
