SeestarCCD Class Reference

The SeestarCCD class provides Seestar specific workarounds for the ASCOM Alpaca CCD driver. More...

#include <indi_seestar_ccd.h>

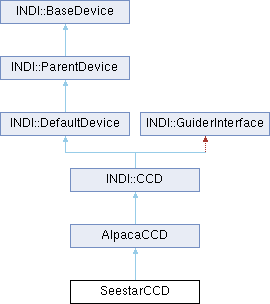

Inheritance diagram for SeestarCCD:

Public Member Functions
	SeestarCCD ()
	Main entry point - INDI handles this through the unique_ptr.
virtual	~SeestarCCD ()=default
virtual const char *	getDefaultName () override
virtual bool	initProperties () override
	Initialize properties initial state and value. The child class must implement this function.
virtual bool	Connect () override
	Connect to the device. INDI::DefaultDevice implementation connects to appropriate connection interface (Serial or TCP) governed by connectionMode. If connection is successful, it proceed to call Handshake() function to ensure communication with device is successful. For other communication interface, override the method in the child class implementation.
virtual bool	updateProperties () override
	updateProperties is called whenever there is a change in the CONNECTION status of the driver. This will enable the driver to react to changes of switching ON/OFF a device. For example, a driver may only define a set of properties after a device is connected, but not before.
virtual int	SetTemperature (double temperature) override
	Set CCD temperature.
virtual std::string	buildAlpacaFormData (const nlohmann::json &request) override
	Build Alpaca form data with Seestar-specific parameter ordering.
Public Member Functions inherited from AlpacaCCD
	AlpacaCCD ()
virtual	~AlpacaCCD ()=default
void	ISGetProperties (const char *dev) override
	define the driver's properties to the client. Usually, only a minimum set of properties are defined to the client in this function if the device is in disconnected state. Those properties should be enough to enable the client to establish a connection to the device. In addition to CONNECT/DISCONNECT, such properties may include port name, IP address, etc. You should check if the device is already connected, and if this is true, then you must define the remainder of the the properties to the client in this function. Otherwise, the remainder of the driver's properties are defined to the client in updateProperties() function which is called when a client connects/disconnects from a device.
virtual bool	ISNewText (const char *dev, const char *name, char *texts[], char *names[], int n) override
	Process the client newSwitch command.
virtual bool	ISNewNumber (const char *dev, const char *name, double values[], char *names[], int n) override
	Process the client newNumber command.
virtual bool	ISNewSwitch (const char *dev, const char *name, ISState *states, char *names[], int n) override
	Process the client newSwitch command.
virtual bool	saveConfigItems (FILE *fp) override
	saveConfigItems Save configuration items in XML file.
Public Member Functions inherited from INDI::CCD
	CCD ()
virtual	~CCD ()
virtual bool	ISNewBLOB (const char *dev, const char *name, int sizes[], int blobsizes[], char *blobs[], char *formats[], char *names[], int n) override
	Process the client newBLOB command.
virtual bool	ISSnoopDevice (XMLEle *root) override
	Process a snoop event from INDI server. This function is called when a snooped property is updated in a snooped driver.
Public Member Functions inherited from INDI::DefaultDevice
	DefaultDevice ()
virtual	~DefaultDevice () override=default
void	addAuxControls ()
	Add Debug, Simulation, and Configuration options to the driver.
void	addDebugControl ()
	Add Debug control to the driver.
void	addSimulationControl ()
	Add Simulation control to the driver.
void	addConfigurationControl ()
	Add Configuration control to the driver.
void	addPollPeriodControl ()
	Add Polling period control to the driver.
void	addNicknameControl ()
	Add Nickname text property to the driver.
void	resetProperties ()
	Set all properties to IDLE state.
void	defineNumber (INumberVectorProperty *nvp)
	Define number vector to client & register it. Alternatively, IDDefNumber can be used but the property will not get registered and the driver will not be able to save configuration files.
void	defineProperty (INumberVectorProperty *property)
void	defineText (ITextVectorProperty *tvp)
	Define text vector to client & register it. Alternatively, IDDefText can be used but the property will not get registered and the driver will not be able to save configuration files.
void	defineProperty (ITextVectorProperty *property)
void	defineSwitch (ISwitchVectorProperty *svp)
	Define switch vector to client & register it. Alternatively, IDDefswitch can be used but the property will not get registered and the driver will not be able to save configuration files.
void	defineProperty (ISwitchVectorProperty *property)
void	defineLight (ILightVectorProperty *lvp)
	Define light vector to client & register it. Alternatively, IDDeflight can be used but the property will not get registered and the driver will not be able to save configuration files.
void	defineProperty (ILightVectorProperty *property)
void	defineBLOB (IBLOBVectorProperty *bvp)
	Define BLOB vector to client & register it. Alternatively, IDDefBLOB can be used but the property will not get registered and the driver will not be able to save configuration files.
void	defineProperty (IBLOBVectorProperty *property)
void	defineProperty (INDI::Property &property)
virtual bool	deleteProperty (const char *propertyName)
	Delete a property and unregister it. It will also be deleted from all clients.
bool	deleteProperty (INDI::Property &property)
	deleteProperty Delete a property and unregister it. It will also be deleted from all clients.
virtual void	setConnected (bool status, IPState state=IPS_OK, const char *msg=nullptr)
	Set connection switch status in the client.
int	SetTimer (uint32_t ms)
	Set a timer to call the function TimerHit after ms milliseconds.
void	RemoveTimer (int id)
	Remove timer added with SetTimer.
virtual const char *	getDriverExec ()
virtual const char *	getDriverName ()
void	setVersion (uint16_t vMajor, uint16_t vMinor)
	Set driver version information to be defined in DRIVER_INFO property as vMajor.vMinor.
uint16_t	getMajorVersion () const
uint16_t	getMinorVersion () const
bool	ISNewProperty (INDI::Property &property, const std::string &elementName, const std::any &value)
	Generic convenience function to update a property element as if by client request, simulating an ISNew... call.
template<typename PropertyType , typename ValueType >
bool	updateProperty (PropertyType &property, ValueType *values, char *names[], int n, std::function< bool()> updater, bool saveConfig=false)
	Generic helper function to update an INDI property based on an external operation.
uint32_t	getDriverInterface () const
void	setDriverInterface (uint32_t value)
	setInterface Set driver interface. By default the driver interface is set to GENERAL_DEVICE. You may send an ORed list of DeviceInterface values.
void	watchDevice (const char *deviceName, const std::function< void(INDI::BaseDevice)> &callback)
	Add a device to the watch list.
Public Member Functions inherited from INDI::ParentDevice
	ParentDevice (Type type)
	~ParentDevice ()
	ParentDevice (ParentDevice &&other)=default
ParentDevice &	operator= (ParentDevice &&other)=default
Public Member Functions inherited from INDI::BaseDevice
	BaseDevice ()
virtual	~BaseDevice ()
void	registerProperty (const INDI::Property &property)
	Register the property to be able to observe and update.
void	registerProperty (const INDI::Property &property, INDI_PROPERTY_TYPE type)
int	removeProperty (const char *name, char *errmsg)
	Remove a property.
void	watchProperty (const char *name, const std::function< void(INDI::Property)> &callback, WATCH watch=WATCH_NEW)
	Call the callback function if property is available.
Property	getProperty (const char *name, INDI_PROPERTY_TYPE type=INDI_UNKNOWN) const
	Return a property and its type given its name.
Properties	getProperties ()
	Return a list of all properties in the device.
const Properties	getProperties () const
INDI::PropertyNumber	getNumber (const char *name) const
INDI::PropertyText	getText (const char *name) const
INDI::PropertySwitch	getSwitch (const char *name) const
INDI::PropertyLight	getLight (const char *name) const
INDI::PropertyBlob	getBLOB (const char *name) const
IPState	getPropertyState (const char *name) const
IPerm	getPropertyPermission (const char *name) const
void *	getRawProperty (const char *name, INDI_PROPERTY_TYPE type=INDI_UNKNOWN) const
	Return a property and its type given its name.
void	addMessage (const std::string &msg)
	Add message to the driver's message queue.
void	checkMessage (XMLEle *root)
void	doMessage (XMLEle *msg)
const std::string &	messageQueue (size_t index) const
const std::string &	lastMessage () const
bool	isValid () const
bool	isSameDevice (const BaseDevice &other) const
bool	isConnected () const
void	attach ()
	indicates that the device is ready
void	detach ()
	indicates that the device is being removed
void	setMediator (INDI::BaseMediator *mediator)
	Set the driver's mediator to receive notification of news devices and updated property values.
INDI::BaseMediator *	getMediator () const
void	setDeviceName (const char *dev)
	Set the device name.
const char *	getDeviceName () const
bool	isDeviceNameMatch (const char *otherName) const
	Check that the device name matches the argument.
bool	isDeviceNameMatch (const std::string &otherName) const
	Check that the device name matches the argument.
const char *	getDriverName () const
const char *	getDriverExec () const
const char *	getDriverVersion () const
uint16_t	getDriverInterface () const
	getDriverInterface returns ORed values of DRIVER_INTERFACE. It presents the device classes supported by the driver.
bool	buildSkeleton (const char *filename)
	Build driver properties from a skeleton file.
int	buildProp (const INDI::LilXmlElement &root, char *errmsg, bool isDynamic=false)
	Build a property given the supplied XML element (defXXX)
int	setValue (const INDI::LilXmlElement &root, char *errmsg)
	handle SetXXX commands from client
	operator BaseDevice * ()
BaseDevice *	operator-> ()
bool	operator!= (std::nullptr_t) const
bool	operator== (std::nullptr_t) const
	operator bool () const
	operator bool ()

Protected Member Functions
virtual bool	parseImageBytesMetadata (ImageBytesMetadata *metadata, size_t body_size) override
	Parse ImageBytes metadata with Seestar-specific workarounds.
Protected Member Functions inherited from AlpacaCCD
bool	Disconnect () override
	Disconnect from device.
void	TimerHit () override
	Callback function to be called once SetTimer duration elapses.
virtual bool	StartExposure (float duration) override
	Start exposing primary CCD chip.
virtual bool	AbortExposure () override
	Abort ongoing exposure.
virtual bool	UpdateCCDFrame (int x, int y, int w, int h) override
	CCD calls this function when CCD Frame dimension needs to be updated in the hardware. Derived classes should implement this function.
virtual bool	UpdateCCDBin (int hor, int ver) override
	CCD calls this function when CCD Binning needs to be updated in the hardware. Derived classes should implement this function.
virtual bool	SetCaptureFormat (uint8_t index) override
	SetCaptureFormat Set Active Capture format.
virtual IPState	GuideNorth (uint32_t ms) override
	Guide northward for ms milliseconds.
virtual IPState	GuideSouth (uint32_t ms) override
	Guide southward for ms milliseconds.
virtual IPState	GuideEast (uint32_t ms) override
	Guide easward for ms milliseconds.
virtual IPState	GuideWest (uint32_t ms) override
	Guide westward for ms milliseconds.
struct AlpacaCCD::ImageBytesMetadata	__attribute__ ((packed))
uint32_t	getTransactionId ()
void	setDefaultServerAddress (const char *host, const char *port, bool force=false)
Protected Member Functions inherited from INDI::CCD
uint32_t	GetCCDCapability () const
	GetCCDCapability returns the CCD capabilities.
void	SetCCDCapability (uint32_t cap)
	SetCCDCapability Set the CCD capabilities. All fields must be initialized.
bool	CanAbort ()
bool	CanBin ()
bool	CanSubFrame ()
bool	HasGuideHead ()
bool	HasShutter ()
bool	HasST4Port ()
bool	HasCooler ()
bool	HasBayer ()
bool	HasStreaming ()
bool	HasDSP ()
virtual bool	ExposureComplete (CCDChip *targetChip)
	Uploads target Chip exposed buffer as FITS to the client. Derived classes should class this function when an exposure is complete.
virtual bool	StartGuideExposure (float duration)
	Start exposing guide CCD chip.
virtual bool	AbortGuideExposure ()
	Abort ongoing exposure.
virtual bool	UpdateGuiderFrame (int x, int y, int w, int h)
	CCD calls this function when Guide head frame dimension is updated by the client. Derived classes should implement this function.
virtual bool	UpdateGuiderBin (int hor, int ver)
	CCD calls this function when Guide head binning is updated by the client. Derived classes should implement this function.
virtual bool	UpdateCCDFrameType (CCDChip::CCD_FRAME fType)
	CCD calls this function when CCD frame type needs to be updated in the hardware.
virtual bool	UpdateCCDUploadMode (CCD_UPLOAD_MODE mode)
	CCD calls this function when client upload mode switch is updated.
virtual bool	UpdateGuiderFrameType (CCDChip::CCD_FRAME fType)
	CCD calls this function when Guide frame type is updated by the client.
virtual void	SetCCDParams (int x, int y, int bpp, float xf, float yf)
	Setup CCD parameters for primary CCD. Child classes call this function to update CCD parameters.
virtual void	SetGuiderParams (int x, int y, int bpp, float xf, float yf)
	Setup CCD parameters for guide head CCD. Child classes call this function to update CCD parameters.
virtual bool	StartStreaming ()
	StartStreaming Start live video streaming.
virtual bool	StopStreaming ()
	StopStreaming Stop live video streaming.
void	fits_update_key_s (fitsfile *fptr, int type, std::string name, void *p, std::string explanation, int *status)
virtual void	activeDevicesUpdated ()
	activeDevicesUpdated Inform children that ActiveDevices property was updated so they can snoop on the updated devices if desired.
virtual void	GuideComplete (INDI_EQ_AXIS axis) override
	GuideComplete Signal guide pulse completion.
virtual void	UploadComplete (CCDChip *)
	UploadComplete Signal that capture is completed and image was uploaded and/or saved successfully.
virtual void	checkTemperatureTarget ()
	checkTemperatureTarget Checks the current temperature against target temperature and calculates the next required temperature if there is a ramp. If the current temperature is within threshold of target temperature, it sets the state as OK.
virtual bool	processFastExposure (CCDChip *targetChip)
	processFastExposure After an exposure is complete, check if fast exposure was enabled. If it is, then immediately start the next exposure if possible and decrement the counter.
virtual void	addCaptureFormat (const CaptureFormat &format)
	addCaptureFormat Add a supported camera native capture format (e.g. Mono, Bayer8..etc)
Protected Member Functions inherited from INDI::DefaultDevice
void	setDynamicPropertiesBehavior (bool defineEnabled, bool deleteEnabled)
	setDynamicPropertiesBehavior controls handling of dynamic properties. Dynamic properties are those generated from an external skeleton XML file. By default all properties, including dynamic properties, are defined to the client in ISGetProperties(). Furthermore, when űdeleteProperty(properyName) is called, the dynamic property is deleted by default, and can only be restored by calling buildSkeleton(filename) again. However, it is sometimes desirable to skip the definition of the dynamic properties on startup and delegate this task to the child class. To control this behavior, set enabled to false.
virtual bool	loadConfig (bool silent=false, const char *property=nullptr)
	Load the last saved configuration file.
bool	loadConfig (INDI::Property &property)
	Load property config from the configuration file. If the property configuration is successfully parsed, the corresponding ISNewXXX is called with the values parsed from the config file.
virtual bool	saveConfig (bool silent=false, const char *property=nullptr)
	Save the current properties in a configuration file.
bool	saveConfig (INDI::Property &property)
	Save a property in the configuration file.
virtual bool	purgeConfig ()
	purgeConfig Remove config file from disk.
virtual bool	saveAllConfigItems (FILE *fp)
	saveAllConfigItems Save all the drivers' properties in the configuration file
virtual bool	loadDefaultConfig ()
	Load the default configuration file.
void	setDebug (bool enable)
	Toggle driver debug status A driver can be more verbose if Debug option is enabled by the client.
void	setSimulation (bool enable)
	Toggle driver simulation status A driver can run in simulation mode if Simulation option is enabled by the client.
virtual void	debugTriggered (bool enable)
	Inform driver that the debug option was triggered. This function is called after setDebug is triggered by the client. Reimplement this function if your driver needs to take specific action after debug is enabled/disabled. Otherwise, you can use isDebug() to check if simulation is enabled or disabled.
virtual void	simulationTriggered (bool enable)
	Inform driver that the simulation option was triggered. This function is called after setSimulation is triggered by the client. Reimplement this function if your driver needs to take specific action after simulation is enabled/disabled. Otherwise, you can use isSimulation() to check if simulation is enabled or disabled.
bool	isDebug () const
bool	isSimulation () const
void	registerConnection (Connection::Interface *newConnection)
	registerConnection Add new connection plugin to the existing connection pool. The connection type shall be defined to the client in ISGetProperties()
bool	unRegisterConnection (Connection::Interface *existingConnection)
	unRegisterConnection Remove connection from existing pool
Connection::Interface *	getActiveConnection ()
void	setActiveConnection (Connection::Interface *existingConnection)
	setActiveConnection Switch the active connection to the passed connection plugin
void	setDefaultPollingPeriod (uint32_t msec)
	setDefaultPollingPeriod Change the default polling period to call TimerHit() function in the driver.
void	setPollingPeriodRange (uint32_t minimum, uint32_t maximum)
	setPollingPeriodRange Set the range permitted by the polling range in milliseconds
uint32_t	getPollingPeriod () const
	getPollingPeriod Return the polling period.
void	setCurrentPollingPeriod (uint32_t msec)
	setCurrentPollingPeriod Change the current polling period to call TimerHit() function in the driver.
uint32_t	getCurrentPollingPeriod () const
	getCurrentPollingPeriod Return the current polling period.
uint32_t &	refCurrentPollingPeriod () __attribute__((deprecated))
uint32_t	refCurrentPollingPeriod () const __attribute__((deprecated))
bool	isConfigLoading () const
	isConfigLoading Check if driver configuration is currently in the process of getting loaded.
bool	isInitializationComplete () const
	isInitializationComplete Check if driver initialization is complete.
void	syncDriverInfo ()
	syncDriverInfo sends the current driver information to the client.
void	setDeviceNickname (const char *nick)
	Set the device nickname.
const char *	getDeviceNickname ()
const char *	lookupDeviceNicknameFromId (const char *identifier, const char *device=nullptr)
	Lookup device nickname for an identifier.
bool	setDeviceNicknameFromId (const char *identifier)
	Set device nickname based on an identifier.
void	saveNicknameId (const char *nickname, const char *identifier)
virtual void	nicknameSet (const char *nickname)
	Inform driver that the nickname has been set.
	DefaultDevice (const std::shared_ptr< DefaultDevicePrivate > &dd)
Protected Member Functions inherited from INDI::ParentDevice
	ParentDevice (const std::shared_ptr< ParentDevicePrivate > &dd)
Protected Member Functions inherited from INDI::BaseDevice
	BaseDevice (BaseDevicePrivate &dd)
	BaseDevice (const std::shared_ptr< BaseDevicePrivate > &dd)

Additional Inherited Members
Public Types inherited from INDI::CCD
enum	{   CCD_CAN_BIN = 1 << 0 , CCD_CAN_SUBFRAME = 1 << 1 , CCD_CAN_ABORT = 1 << 2 , CCD_HAS_GUIDE_HEAD = 1 << 3 ,   CCD_HAS_ST4_PORT = 1 << 4 , CCD_HAS_SHUTTER = 1 << 5 , CCD_HAS_COOLER = 1 << 6 , CCD_HAS_BAYER = 1 << 7 ,   CCD_HAS_STREAMING = 1 << 8 , CCD_HAS_DSP = 1 << 10 }
enum	CCD_UPLOAD_MODE { UPLOAD_CLIENT , UPLOAD_LOCAL , UPLOAD_BOTH }
typedef struct INDI::CCD::CaptureFormat	CaptureFormat
Public Types inherited from INDI::ParentDevice
enum	Type { Valid , Invalid }
Public Types inherited from INDI::BaseDevice
enum	INDI_ERROR { INDI_DEVICE_NOT_FOUND = -1 , INDI_PROPERTY_INVALID = -2 , INDI_PROPERTY_DUPLICATED = -3 , INDI_DISPATCH_ERROR = -4 }
enum	{ INDI_ENABLED , INDI_DISABLED }
enum	WATCH { WATCH_NEW = 0 , WATCH_UPDATE , WATCH_NEW_OR_UPDATE }
enum	DRIVER_INTERFACE {   GENERAL_INTERFACE = 0 , TELESCOPE_INTERFACE = (1 << 0) , CCD_INTERFACE = (1 << 1) , GUIDER_INTERFACE = (1 << 2) ,   FOCUSER_INTERFACE = (1 << 3) , FILTER_INTERFACE = (1 << 4) , DOME_INTERFACE = (1 << 5) , GPS_INTERFACE = (1 << 6) ,   WEATHER_INTERFACE = (1 << 7) , AO_INTERFACE = (1 << 8) , DUSTCAP_INTERFACE = (1 << 9) , LIGHTBOX_INTERFACE = (1 << 10) ,   DETECTOR_INTERFACE = (1 << 11) , ROTATOR_INTERFACE = (1 << 12) , SPECTROGRAPH_INTERFACE = (1 << 13) , CORRELATOR_INTERFACE = (1 << 14) ,   AUX_INTERFACE = (1 << 15) , OUTPUT_INTERFACE = (1 << 16) , INPUT_INTERFACE = (1 << 17) , POWER_INTERFACE = (1 << 18) ,   IMU_INTERFACE = (1 << 19) , PAC_INTERFACE = (1 << 20) , SENSOR_INTERFACE = SPECTROGRAPH_INTERFACE | DETECTOR_INTERFACE | CORRELATOR_INTERFACE }
	The DRIVER_INTERFACE enum defines the class of devices the driver implements. A driver may implement one or more interfaces. More...
typedef INDI::Properties	Properties
Static Public Member Functions inherited from INDI::CCD
static void	wsThreadHelper (void *context)
Static Public Member Functions inherited from INDI::BaseDevice
static std::string	getSharedFilePath (std::string fileName)
Public Attributes inherited from INDI::CCD
enum INDI::CCD:: { ... }	CCDCapability
Static Public Attributes inherited from INDI::CCD
static constexpr const char *	GUIDE_CONTROL_TAB = "Guider Control"
	Group Names.
static constexpr const char *	WCS_TAB = "WCS"
Protected Types inherited from INDI::CCD
enum	{ Ra , DEC }
enum	{   ACTIVE_TELESCOPE , ACTIVE_ROTATOR , ACTIVE_FOCUSER , ACTIVE_FILTER ,   ACTIVE_SKYQUALITY }
enum	{ RAMP_SLOPE , RAMP_THRESHOLD }
enum	{ CFA_OFFSET_X , CFA_OFFSET_Y , CFA_TYPE }
enum	{ FORMAT_FITS , FORMAT_NATIVE , FORMAT_XISF }
enum	{ UPLOAD_DIR , UPLOAD_PREFIX }
enum	{ FOCAL_LENGTH , APERTURE }
enum	{ WCS_ENABLE , WCS_DISABLE }
enum	{ KEYWORD_NAME , KEYWORD_VALUE , KEYWORD_COMMENT }
Protected Attributes inherited from INDI::CCD
double	RA
double	Dec
int	pierSide
double	J2000RA
double	J2000DE
bool	J2000Valid
char	exposureStartTime [MAXINDINAME]
double	exposureDuration
double	snoopedFocalLength
double	snoopedAperture
bool	InExposure
bool	InGuideExposure
bool	AutoLoop
bool	GuiderAutoLoop
bool	SendImage
bool	GuiderSendImage
bool	ShowMarker
bool	GuiderShowMarker
double	ExposureTime
double	GuiderExposureTime
double	MPSAS
double	RotatorAngle
double	RotatorPosition
long	FocuserPos
double	FocuserTemp
double	Airmass
double	Latitude
double	Longitude
double	Azimuth
double	Altitude
double	m_TargetTemperature {0}
INDI::Timer	m_TemperatureCheckTimer
INDI::ElapsedTimer	m_TemperatureElapsedTimer
double	m_TemperatureStabilizationValue {0}
INDI::ElapsedTimer	m_TemperatureStabilizationTimer
double	m_InitialRampTemperature {0}
std::mutex	ccdBufferLock
std::vector< std::string >	FilterNames
int	CurrentFilterSlot {-1}
std::vector< CaptureFormat >	m_CaptureFormats
std::unique_ptr< StreamManager >	Streamer
std::unique_ptr< DSP::Manager >	DSP
CCDChip	PrimaryCCD
CCDChip	GuideCCD
INDI::PropertyNumber	EqNP {2}
	Properties.
INDI::PropertyNumber	J2000EqNP {2}
	J200EqNP Snoop property to read the equatorial J2000 coordinates of the mount. ActiveDeviceTP defines snoop devices and the driver listens to this property emitted by the mount driver if specified. It is important to generate a proper FITS header.
INDI::PropertyText	ActiveDeviceTP {5}
	ActiveDeviceTP defines 4 devices the camera driver can listen to (snoop) for properties of interest so that it can generate a proper FITS header.
INDI::PropertyNumber	TemperatureNP {1}
	TemperatureNP Camera Temperature in Celcius.
INDI::PropertyNumber	TemperatureRampNP {2}
	Temperature Ramp in C/Min with configurable threshold.
INDI::PropertyText	BayerTP {3}
	BayerTP Bayer pattern offset and type.
INDI::PropertyText	FileNameTP {1}
	FileNameTP File name of locally-saved images. By default, images are uploaded to the client but when upload option is set to either Both or Local, then they are saved on the local disk with this name.
INDI::PropertySwitch	CaptureFormatSP {0}
	Specifies Camera NATIVE capture format (e.g. Mono, RGB, RAW8..etc).
INDI::PropertySwitch	EncodeFormatSP {3}
	Specifies Driver image encoding format (FITS, Native, JPG, ..etc)
INDI::PropertySwitch	UploadSP {3}
INDI::PropertyText	UploadSettingsTP {2}
INDI::PropertyNumber	ScopeInfoNP {2}
INDI::PropertySwitch	WorldCoordSP {2}
INDI::PropertyNumber	CCDRotationNP {1}
INDI::PropertySwitch	FastExposureToggleSP {2}
INDI::PropertyNumber	FastExposureCountNP {1}
double	m_UploadTime = { 0 }
std::chrono::system_clock::time_point	FastExposureToggleStartup
INDI::PropertyText	FITSHeaderTP {3}
Protected Attributes inherited from INDI::BaseDevice
std::shared_ptr< BaseDevicePrivate >	d_ptr

Detailed Description

The SeestarCCD class provides Seestar specific workarounds for the ASCOM Alpaca CCD driver.

The Seestar CCD has bugs in its ImageBytes protocol implementation:

1. Rank is stored in Dimension1 field instead of Rank field
2. Width is stored in Dimension3 field instead of Dimension1
3. Height is correct in Dimension2
4. TransmissionElementType reports Int32 (2) but actually sends Int16 data
5. DataStart reports 0 but should be 44

This driver applies workarounds to correctly interpret Seestar images.

Definition at line 45 of file indi_seestar_ccd.h.

Constructor & Destructor Documentation

SeestarCCD()

SeestarCCD::SeestarCCD

(

)

Main entry point - INDI handles this through the unique_ptr.

Definition at line 41 of file indi_seestar_ccd.cpp.

~SeestarCCD()

virtual SeestarCCD::~SeestarCCD ( )

virtualdefault

Member Function Documentation

buildAlpacaFormData()

std::string SeestarCCD::buildAlpacaFormData ( const nlohmann::json &  request )

overridevirtual

Build Alpaca form data with Seestar-specific parameter ordering.

Seestar requires method parameters BEFORE ClientID/ClientTransactionID (opposite of standard Alpaca ordering)

Reimplemented from AlpacaCCD.

Definition at line 123 of file indi_seestar_ccd.cpp.

Connect()

bool SeestarCCD::Connect ( )

overridevirtual

Connect to the device. INDI::DefaultDevice implementation connects to appropriate connection interface (Serial or TCP) governed by connectionMode. If connection is successful, it proceed to call Handshake() function to ensure communication with device is successful. For other communication interface, override the method in the child class implementation.

Returns

True if connection is successful, false otherwise

Reimplemented from AlpacaCCD.

Definition at line 76 of file indi_seestar_ccd.cpp.

getDefaultName()

const char * SeestarCCD::getDefaultName ( )

overridevirtual

Returns

Default name of the device.

Reimplemented from AlpacaCCD.

Definition at line 49 of file indi_seestar_ccd.cpp.

initProperties()

bool SeestarCCD::initProperties ( )

overridevirtual

Initialize properties initial state and value. The child class must implement this function.

Returns

True if initialization is successful, false otherwise.

Reimplemented from AlpacaCCD.

Definition at line 57 of file indi_seestar_ccd.cpp.

parseImageBytesMetadata()

bool SeestarCCD::parseImageBytesMetadata ( ImageBytesMetadata *  metadata, size_t  body_size  )

overrideprotectedvirtual

Parse ImageBytes metadata with Seestar-specific workarounds.

Overrides the base class method to apply Seestar quirk fixes:

• Swap dimension fields to correct locations
• Force Int16 element type regardless of what's reported
• Fix DataStart offset

Parameters

metadata	Pointer to ImageBytesMetadata structure (will be modified)
body_size	Total size of HTTP response body

Returns

true if metadata is valid after corrections

Reimplemented from AlpacaCCD.

Definition at line 163 of file indi_seestar_ccd.cpp.

SetTemperature()

int SeestarCCD::SetTemperature ( double  temperature )

overridevirtual

Set CCD temperature.

Parameters

temperature

CCD temperature in degrees celcius.

Returns

0 or 1 if setting the temperature call to the hardware is successful. -1 if an error is encountered. Return 0 if setting the temperature to the requested value takes time. Return 1 if setting the temperature to the requested value is complete.

Note

Upon returning 0, the property becomes BUSY. Once the temperature reaches the requested value, change the state to OK.

This function is not implemented in CCD, it must be implemented in the child class

Reimplemented from AlpacaCCD.

Definition at line 113 of file indi_seestar_ccd.cpp.

updateProperties()

bool SeestarCCD::updateProperties ( )

overridevirtual

updateProperties is called whenever there is a change in the CONNECTION status of the driver. This will enable the driver to react to changes of switching ON/OFF a device. For example, a driver may only define a set of properties after a device is connected, but not before.

Returns

True if update is successful, false otherwise.

Reimplemented from AlpacaCCD.

Definition at line 94 of file indi_seestar_ccd.cpp.

---

The documentation for this class was generated from the following files:

• indi_seestar_ccd.h
• indi_seestar_ccd.cpp
